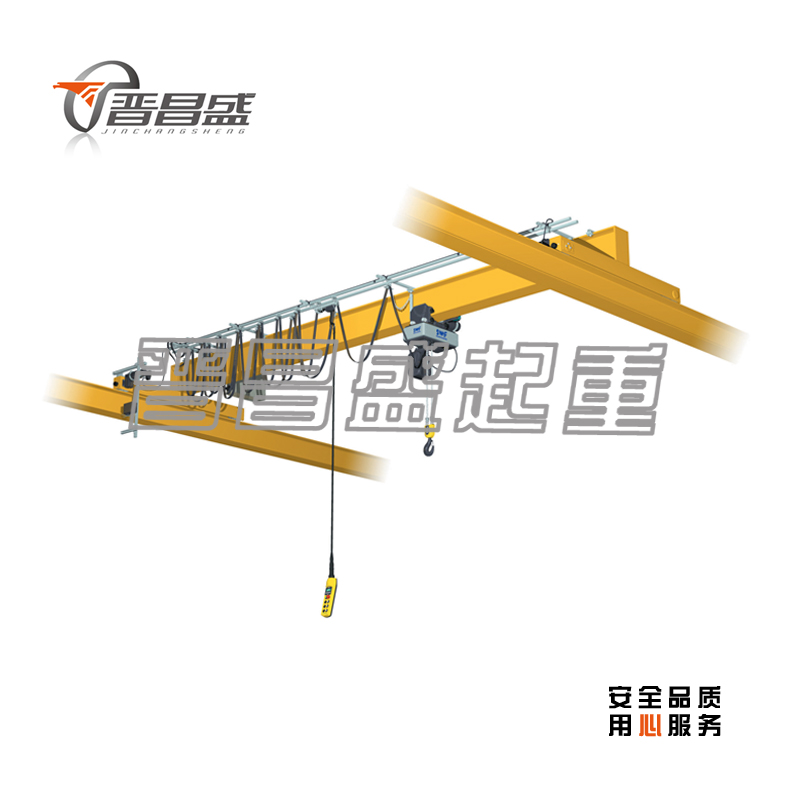

起重量：2t-10t
起升高度：9m
工作等級：A3、A4、A5
|
起重量 kg |
跨度 m |
起升高度 m |
起升速度 m/min |
最大輪壓 KN |
整車功率 KW |
整車重量 T |
|---|---|---|---|---|---|---|
| 2000 | 7.5 | 9 | 5/0.83標準速度 | 14 | 2.7 | 1.5 |
| 10.5 | 15.5 | 1.85 | ||||
| 13.5 | 16.2 | 2.2 | ||||
| 16.5 | 18.5 | 3 | ||||
| 19.5 | 19.9 | 3.5 | ||||
| 22.5 | 22.5 | 4.8 | ||||
| 25.5 | 24 | 3 | 5.8 | |||
| 28.5 | 28.5 | 7.6 | ||||
| 3200 | 7.5 | 9 | 5/0.83標準速度 | 18.5 | 4.5 | 1.6 |
| 10.5 | 19.8 | 2 | ||||
| 13.5 | 20.9 | 2.3 | ||||
| 16.5 | 23.4 | 3.3 | ||||
| 19.5 | 24.6 | 3.8 | ||||
| 22.5 | 28 | 4.8 | 5.2 | |||
| 25.5 | 29.9 | 6 | ||||
| 28.5 | 34.4 | 7.8 | ||||
| 5000 | 7.5 | 9 | 5/0.83標準速度 | 25.2 | 5.5 | 2 |
| 10.5 | 27.6 | 2.7 | ||||
| 13.5 | 30.2 | 3.2 | ||||
| 16.5 | 32.6 | 4 | ||||
| 19.5 | 35 | 5.9 | 5 | |||
| 22.5 | 38 | 6 | ||||
| 25.5 | 42.5 | 7.3 | ||||
| 28.5 | 46 | 6.2 | 9.4 | |||
| 8000 | 7.5 | 9 | 5/0.83標準速度 | 43.5 | 10.6 | 2.6 |
| 10.5 | 45.6 | 3.1 | ||||
| 13.5 | 48 | 10.9 | 4 | |||
| 16.5 | 52.7 | 5.1 | ||||
| 19.5 | 54 | 6.5 | ||||
| 22.5 | 57.8 | 12.1 | 7.7 | |||
| 25.5 | 62 | 8.8 | ||||
| 28.5 | 66.5 | 10.6 | ||||
| 10000 | 7.5 | 9 | 5/0.83標準速度 | 50.5 | 10.9 | 2.6 |
| 10.5 | 54.5 | 3.2 | ||||
| 13.5 | 57 | 4.25 | ||||
| 16.5 | 60.5 | 5.2 | ||||
| 19.5 | 63.8 | 11.2 | 6.7 | |||
| 22.5 | 70 | 8.15 | ||||
| 25.5 | 73 | 12.1 | 9.25 | |||
| 28.5 | 77.8 | 11.9 |
